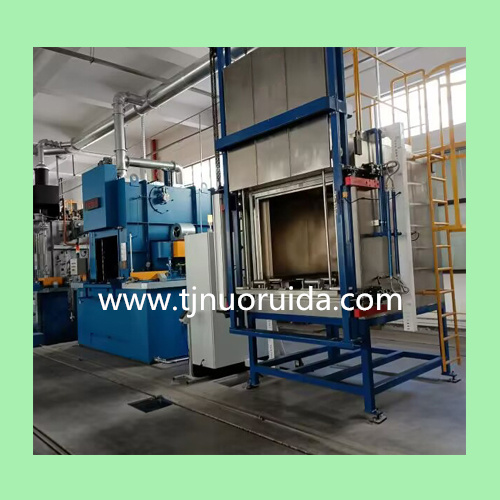

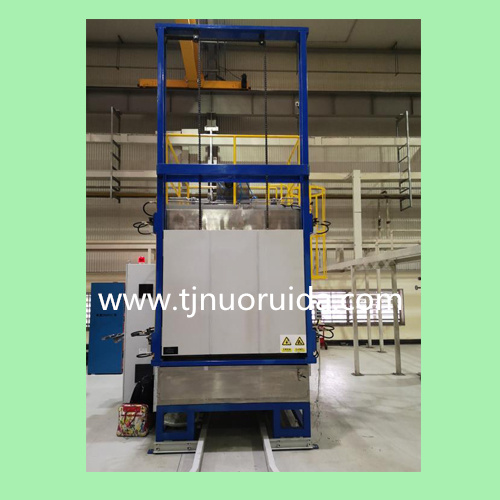

online cryogenic processing equipment with heat treatment machine
Heat treatment line with cryogenic furnace, online cryogenic processing equipment, the lowest temperature can reach at -190 degree, the temperature can be adjustable
Specification:
Working temperature―room temperature ～-190℃ you can adjust the temperature as your need
Lowest temperature inside――-190℃
Max cooling rate―― 0~30℃/min can be set at random
Accuracy of temperature control―― ±3℃；
Temperature uniformity――±1℃；
The open direction of the door ____flip-up
The door sealing __ __ Special low temperature resistance materials can ensure the box door open easily
| Model |
Inside size
( L×W×H )mm |
Outside dimensions
( L×W×H )mm |
Volume
( L ) |
Load capacity ( KG ) |
| NRD-225W |
900×500×500 |
1900×3500×2200 |
225 |
450 |
| NRD-324W |
900×600×600 |
1900×3700×2300 |
324 |
650 |
| NRD-768W |
1200×800×800 |
2200×4000×2500 |
768 |
1000 |
| NRD-1000W |
1000×1000×1000 |
2700×4700×2200 |
1000 |
1000 |
| NRD-2000W |
2000×1000×1000 |
2700×5000×3500 |
2000 |
1500 |
| NRD-6000W |
2000×1500×1500 |
2700×5500×4000 |
6000 |
2000 |
